See also Offset Right Angle and Heavy Duty Right Angle

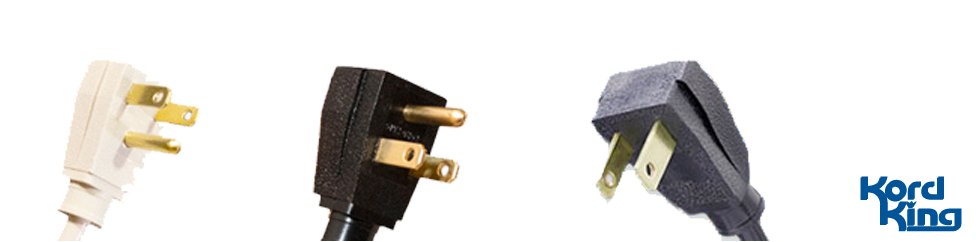

Kord King is the largest US manufacturer of right angle power cords and cordsets in the basic NEMA 5-15P configuration. The right angle 5-15P is available in 2 styles – either the standard orientation of the ground pin at the bottom, or with the ground pin at the top. Kord King also manufactures the NEMA 5-15P in 6 different offset right angles, 4 different configurations for Heavy Duty (5-15P, 5-20P, 6-15P and 6-20P) and 8 configurations for Industrial Duty (5-30P, 6-30P, 6-50P, 10-30P, 14-30P, 14-50P, 14-60P, 15-30P and 15-50P).

We provide the best lead times in the industry with typical delivery times within 1-2 weeks, and better if needed with reasonable minimum order quantities.

These standard right angle power cords and cordsets are widely used in the appliance industry where tight space requirements and safety issues are common. Right angle cords are available in both the NEMA 5-15P, 3-conductor and NEMA 1-15P, 2-conductor (standard or polarized) configuration.

All Kord King’s right angle power cords are U.L. listed and C.S.A. approved. Our molded, ergonomic plugs have an extra-large head with deep contoured ridges for easy, non-slip handling, and, they also feature a heavy-duty strain relief.

Right angle power cords are available in a variety of colors in any length with opposite end terminations manufactured to customer specifications.

Right angle Plugs Technical Data Chart

(See also technical data charts for Offset right angle and Heavy Duty Right Angle)

** Available in a variety of wire types **

Request a Quote

Plug Types Technical Data

CAD Catalog # Product Name UL CSA C/UL C/US CSA NEMA UR
RIGHT ANGLE PLUG / PIN AT BOTTOM 5-15P CAD Drawing KK7000 RIGHT ANGLE PLUG / PIN AT BOTTOM 5-15P X X X RIGHT ANGLE PLUG / PIN AT BOTTOM 5-15P Thumbnail Image 5-15p
RIGHT ANGLE PLUG / PIN AT TOP 5-15P CAD Drawing KK8000 RIGHT ANGLE PLUG / PIN AT TOP 5-15P X X X RIGHT ANGLE PLUG / PIN AT TOP 5-15P Thumbnail Image 5-15p
RIGHT ANGLE PLUG 1-15P CAD Drawing KK9000 RIGHT ANGLE PLUG 1-15P X X X RIGHT ANGLE PLUG 1-15P Thumbnail Image 1-15p

Technical Data

Plug Type Wire Amps Voltage
NEMA 5-15P RAT (TOP) 18/3, 16/3, 14/3 10, 13, 15 125
NEMA 5-15P RAB (BOTTOM) 18/3, 16/3, 14/3 10, 13, 15 125
NEMA 1-15P 18/3, 16/3, 14/3 10, 13, 15 125

** Available in a variety of wire types **
