Kord King Power Cord, Plugs, and Switch Product Lines

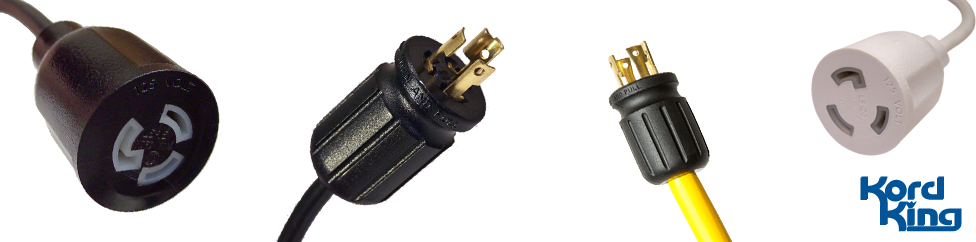

Twist Lock, or Locking Plug power cords and cordsets are ideal for use in applications where a continuous electrical connection is required. They are specifically designed for high usage, rough environment, industrial and commercial applications.

Locking plug power cords are often found powering devices such as computer racks, lighting and sound equipment, power poles, outlet strips, medical equipment and heavy duty machines to prevent unwanted disconnects.

Another significant benefit of twist lock plugs and power cords is the prevention of mating incompatible devices when higher voltages are involved. Safety and quality are of the highest priority, and all parts are subjected to rigorous inspection to ensure customer satisfaction.

Kord King is the largest manufacturer of Twist lock and Locking plug power cords offering a variety of products for OEMs in the most popular NEMA configurations (L5-L24).

Kord King’s Twist Lock plugs and power cords are built in the U.S.A. Customizable features include plug color, cord length and second-end configuration. Plug bodies are molded with deeply contoured ridges to provide a non-slip grip that makes “plug-in” quick and easy.

Twist Lock plugs and power cords are available in a wide range of sizes – from 18 to 10 AWG, 15 to 30 Amp ratings and voltages from 120 to 480 volts.

Kord King offers short lead times, often fulfilling orders within 2 weeks with reasonable minimum order quantities. Kord King products are UL listed and CSA approved, RoHS compliant.

Call Kord King today at 800.818.4916 and we’ll be happy to help with any of your Twist Lock plug and power cord requirements, or use our Request a Quote form below.


TECHNICAL DATA - TWIST LOCK

CAD CAT # DESCRIPTION UL CSA C/UL PHOTO NEMA WIRE SIZES AMPERAGE VOLTAGE
TWIST LOCK NEMA L5-15P CAD Drawing KKL5-15P TWIST LOCK NEMA L5-15P X   X TWIST LOCK NEMA L5-15P Thumbnail Image L5-15P 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
TWIST LOCK NEMA L5-15R CAD Drawing KKL5-15R TWIST LOCK NEMA L5-15R X   X TWIST LOCK NEMA L5-15R Thumbnail Image L5-15R 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
TWIST LOCK NEMA L5-20P CAD Drawing KKL5-20P TWIST LOCK NEMA L5-20P X X X TWIST LOCK NEMA L5-20P Thumbnail Image L5-20P 16/3, 14/3, 12/3 13, 15, 20 125
TWIST LOCK NEMA L5-20R CAD Drawing KKL5-20R TWIST LOCK NEMA L5-20R X   X TWIST LOCK NEMA L5-20R Thumbnail Image L5-20R 16/3, 14/3, 12/3 13, 15, 20 125
TWIST LOCK NEMA L5-30P CAD Drawing KKL5-30P TWIST LOCK NEMA L5-30P X   X TWIST LOCK NEMA L5-30P Thumbnail Image L5-30P 14/3, 12/3, 10/3, 8/3 18, 25, 30, 30 125
TWIST LOCK NEMA L6-15P CAD Drawing KKL6-15P TWIST LOCK NEMA L6-15P X   X TWIST LOCK NEMA L6-15P Thumbnail Image L6-15P 16/3, 14/3, 12/3 13, 15, 15 250
TWIST LOCK NEMA L6-20P CAD Drawing KKL6-20P TWIST LOCK NEMA L6-20P X   X TWIST LOCK NEMA L6-20P Thumbnail Image L6-20P 16/3, 14/3, 12/3 13, 15, 20 250
TWIST LOCK NEMA L6-30P CAD Drawing KKL6-30P TWIST LOCK PLUG L6-30P X X X TWIST LOCK NEMA L6-30P Thumbnail Image L6-30P 14/3, 12/3, 10/3, 8/3 18, 25, 30, 30 250
TWIST LOCK NEMA L7-15P CAD Drawing KKL7-15P TWIST LOCK NEMA L7-15P X   X TWIST LOCK NEMA L7-15P Thumbnail Image L7-15P 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 277
TWIST LOCK NEMA L7-15R CAD Drawing KKL7-15R TWIST LOCK NEMA L7-15R X   X TWIST LOCK NEMA L7-15R Thumbnail Image L7-15R 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 277
TWIST LOCK NEMA L7-20P CAD Drawing KKL7-20P TWIST LOCK NEMA L7-20P X   X TWIST LOCK NEMA L7-20P Thumbnail Image L7-20P 16/3, 14/3, 12/3 13, 15, 20 277
TWIST LOCK NEMA L8-20P CAD Drawing KKL8-20P TWIST LOCK NEMA L8-20P X   X TWIST LOCK NEMA L8-20P Thumbnail Image L8-20P 16/3, 14/3, 12/3 13, 15, 20 480
TWIST LOCK NEMA L14-20P CAD Drawing KKL14-20P TWIST LOCK NEMA L14-20P X   X TWIST LOCK NEMA L14-20P Thumbnail Image L14-20P 16/4, 14/4, 12/4 13, 18, 20 125/250
TWIST LOCK NEMA L14-30P CAD Drawing KKL14-30P TWIST LOCK NEMA L14-30P X   X TWIST LOCK NEMA L14-30P Thumbnail Image L14-30P 14/4, 12/4, 10/4, 8/4 18, 25, 30, 30 125/250
TWIST LOCK NEMA L24-20P CAD Drawing KKL24-20P TWIST LOCK NEMA L24-20P X   X TWIST LOCK NEMA L24-20P Thumbnail Image L24-20P 16/3, 14/3, 12/3 13, 18, 20 347

** Available in a variety of wire types **
