Heavy Duty Right Angle Power Cords

Heavy Duty Right Angle Plug Types Technical

Heavy Duty Right Angle Power Cord Technical Data

Additional Heavy Duty Right Angle Power Cord Information

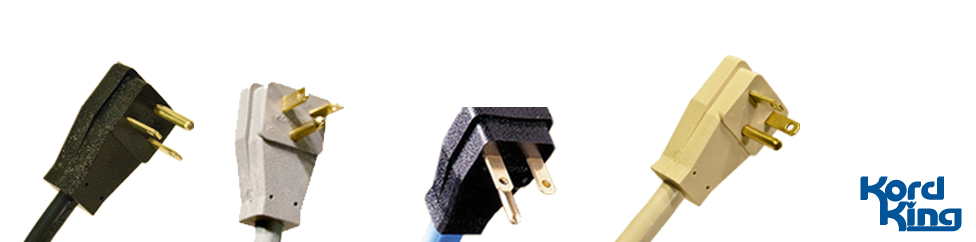

Right Angle cords and cordsets can be molded with offset contacts at 45, 135, 180, 225, 315 and 0/360 degrees to meet your specific needs. Two options are available for the grounding pin position – you can elect to have the grounding pin molded at the bottom or the top of the plug face. These cords are offered in a 3-wire configuration as either NEMA 5-15P, 5-20P, 6-15P or 6-20P. Since Right Angle cords are designed with the cable portion exiting the plug at 90 degrees as opposed to the standard 180 degrees, little clearance is required. This design feature helps to save space and prevent unwanted damage to the plug and receptacle.

Heavy duty right angle power cords are molded with an ergonomic, extra-large plug head and deep contoured ridges for non-slip handling, making installation quick and easy. Kord King’s heavy duty right angle power cords are U.L. listed and C.S.A. approved, so our customers know they are receiving a reliable product that won’t fail. A wide selection of wire types and colors are available, cords and cordsets can be ordered for 10, 13, 15 and 20 Amps and 125 to 250 volts. Please see our technical data summary table for a list of configurations.

Kord King offers short lead times, often fulfilling orders within 2 weeks with reasonable minimum order quantities. Kord King products are built in the U.S.A and are U.L. listed and C.S.A. approved, RoHS and Prop 65 compliant. Call Kord King today at 800.818.4916 for any of your Heavy Duty Right Angle cord or cordset requirements, or use our convenient online contact form.

** Available in a variety of wire types **

Right Angle Plug Construction and Orientation Options

Heavy duty right angle power cords are molded with the cable exiting the plug at 90 degrees, reducing the space required behind equipment. Plug orientation can be customized with offset contact positions at 0/360, 45, 135, 180, 225, and 315 degrees. BRAB versions position the grounding pin at the bottom, while BRAT versions position it at the top. These options support equipment layouts where clearance, routing, or receptacle orientation must be considered.

Performance Characteristics for Industrial Applications

These cords are available in amperage ratings of 10, 13, 15, and 20 amps with voltage classifications of 125 or 250 depending on the NEMA pattern. Wire size compatibility includes 18/3, 16/3, and 14/3, allowing integration with a wide range of equipment. The right angle design helps prevent stress on the plug and receptacle, reducing the likelihood of damage in tight installations or high traffic areas.

Material and Design Features

Heavy duty right angle power cords feature an extra large molded plug head with deep contoured ridges for secure handling. The ergonomic design supports quick installation and removal, even when gloves are worn. Internal strain relief structures help maintain conductor integrity during bending or tension. Multiple wire types and colors are available to support facility identification and OEM requirements. UL listing, CSA approval, RoHS compliance, and Prop 65 adherence support use in regulated environments.

Available Heavy Duty Right Angle Power Cord Options

The product lineup includes NEMA 5 15P, 5 20P, 6 15P, and 6 20P configurations in BRAB and BRAT versions. Orientation options include multiple offset angles to support equipment specific routing. These cords can be manufactured in various lengths and wire types to meet OEM and facility level specifications.

FAQs

What is a Heavy Duty Right Angle Power Cord?

A heavy duty right angle power cord is a robust cord designed for high-amp industrial and commercial applications, featuring a plug that exits the cable at a 90-degree angle. This design minimizes clearance requirements, protects the plug and receptacle from damage, and allows for safer, more compact installations in tight spaces.

What Options are Available for Grounding Pin and Plug Orientation?

Kord King right angle cords offer flexible configurations with the grounding pin molded at either the top or bottom of the plug face. Additionally, the plug can be molded with offset contacts at multiple angles—45, 135, 180, 225, 315, or 0/360 degrees—to meet specific installation needs.

Are Kord King Heavy Duty Right Angle Cords Safe and Reliable?

Yes. All Kord King right angle cords are U.L. listed, C.S.A. approved, and compliant with RoHS and Prop 65 standards. Each cord is molded with an ergonomic, non-slip plug head and undergoes stringent quality checks to ensure durability, easy handling, and safe operation under demanding conditions.
