Kord King Power Cord, Plugs, and Switch Product Lines

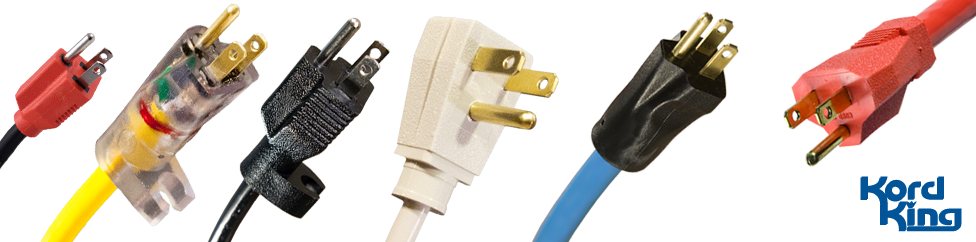

NEMA 5-15p power cords and cordsets (Standard 3-Conductor) are one of the most commonly used plug configurations and are typically found on cords for devices such as light fixtures, heaters, air conditioners, exercise equipment and food service equipment. This plug type is recommended for 10, 13 and 15 Amp devices running at 120 Volts where a ground is required. The ground pin is longer than the blades so it makes contact with the power source first, which is an important safety feature for preventing electric shock. The presence of the ground pin also ensures polarity, as the plug can only be connected one way. Kord King also offers a cord grip style plug in the NEMA 5-15p configuration.

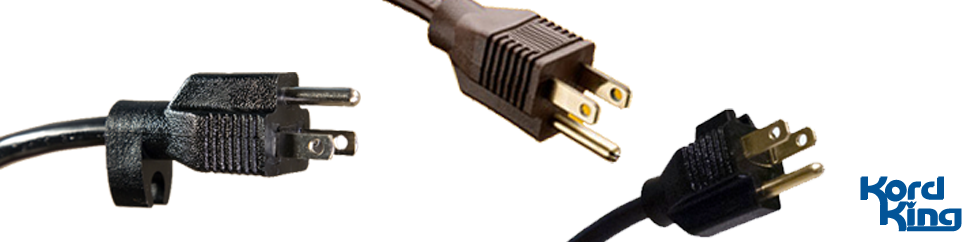

NEMA 5-15p power cords (Standard 3-Conductor) are manufactured by Kord King in the United States with short lead times and reasonable minimum order quantities. The opposite end can be terminated, blunt cut, stripped or customized in order to work best for your application. The 5-15p features an ergonomic shape, and can be molded in a spectrum of colors to match our customers’ needs. Kord King NEMA 5-15p plugs are U.L. listed and C.S.A. approved, and they conform to critical environmental compliance standards such as RoHS.


TECHNICAL DATA - NEMA 5-15

CAD CAT # DESCRIPTION UL CSA C/UL PHOTO NEMA WIRE SIZES AMPERAGE VOLTAGE
STANDARD PLUG 5-15P CAD Drawing KK1000 STANDARD NEMA 5-15P X X X STANDARD PLUG 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3 10, 13, 15 125

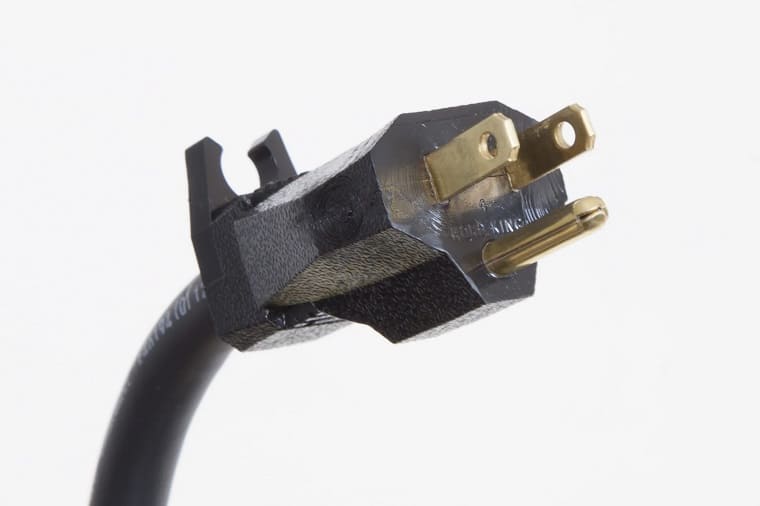

STANDARD PLUG 5-15P WITH CORD GRIP CAD Drawing CG1000 STANDARD NEMA 5-15P WITH CORD GRIP X X X STANDARD PLUG 5-15P WITH CORD GRIP Thumbnail Image 5-15p 18/3, 16/3, 14/3 10, 13, 15 125
HOSPITAL PLUG 5-15P CAD Drawing KK13000 HOSPITAL GRADE NEMA 5-15P X X X HOSPITAL PLUG 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
RIGHT ANGLE PLUG 5-15P - GROUND PIN AT BOTTOM CAD Drawing KK7000 RIGHT ANGLE NEMA 5-15P - GROUND PIN AT BOTTOM X X X RIGHT ANGLE PLUG 5-15P - GROUND PIN AT BOTTOM Thumbnail Image 5-15p 18/3, 16/3, 14/3 10, 13, 15 125
RIGHT ANGLE PLUG 5-15P - GROUND PIN AT TOP CAD Drawing KK8000 RIGHT ANGLE NEMA 5-15P - GROUND PIN AT TOP X X X RIGHT ANGLE PLUG 5-15P - GROUND PIN AT TOP Thumbnail Image 5-15p 18/3, 16/3, 14/3 10, 13, 15 125
OFFSET RIGHT ANGLE 5-15P (0°) CAD Drawing KK19000-ORA-0 OFFSET RIGHT ANGLE NEMA 5-15P (0°) X   X OFFSET RIGHT ANGLE 5-15P (0°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (45°) CAD Drawing KK19000-ORA-45 OFFSET RIGHT ANGLE NEMA 5-15P (45°) X   X OFFSET RIGHT ANGLE 5-15P (45°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (90°) CAD Drawing KK19000-ORA-90 OFFSET RIGHT ANGLE NEMA 5-15P (90°) X   X OFFSET RIGHT ANGLE 5-15P (90°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (135°) CAD Drawing KK19000-ORA-135 OFFSET RIGHT ANGLE NEMA 5-15P (135°) X   X OFFSET RIGHT ANGLE 5-15P (135°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (180°) CAD Drawing KK19000-ORA-180 OFFSET RIGHT ANGLE NEMA 5-15P (180°) X   X OFFSET RIGHT ANGLE 5-15P (180°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (225°) CAD Drawing KK19000-ORA-225 OFFSET RIGHT ANGLE NEMA 5-15P (225°) X   X OFFSET RIGHT ANGLE 5-15P (225°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (270°) CAD Drawing KK19000-ORA-270 OFFSET RIGHT ANGLE NEMA 5-15P (270°) X   X OFFSET RIGHT ANGLE 5-15P (270°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
OFFSET RIGHT ANGLE 5-15P (315°) CAD Drawing KK19000-ORA-315 OFFSET RIGHT ANGLE NEMA 5-15P (315°) X   X OFFSET RIGHT ANGLE 5-15P (315°) Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
BFP PLUG 5-15P CAD Drawing KK6000 HEAVY DUTY NEMA 5-15P X X X BFP PLUG 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
BFP PLUG 5-15P CORD GRIP CAD Drawing CG6000 HEAVY DUTY NEMA 5-15P WITH CORD GRIP X X X BFP PLUG 5-15P CORD GRIP Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
BRAB & BRAT PLUG 5-15P CAD Drawing KK15000-5-15-BRAB HEAVY DUTY RIGHT ANGLE NEMA 5-15P - PIN AT BOTTOM X X X BRAB & BRAT PLUG 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
BRAB & BRAT PLUG 5-15P CAD Drawing KK15000-5-15-BRAT HEAVY DUTY RIGHT ANGLE NEMA 5-15P - PIN AT TOP X X X

PHOTO COMING SOON

18/3, 16/3, 14/3, 12/3 10, 13, 15, 15 125
BFUP PLUG 5-15P CAD Drawing KK14000-5-15 INDUSTRIAL DUTY NEMA 5-15P X X X BFUP PLUG 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3, 10/3 10, 13, 15, 15, 15 125
BFUP PLUG / CORD GRIP 5-15P CAD Drawing CG14000-5-15 INDUSTRIAL DUTY NEMA 5-15P WITH CORD GRIP X X X BFUP PLUG / CORD GRIP 5-15P Thumbnail Image 5-15p 18/3, 16/3, 14/3, 12/3, 10/3 10, 13, 15, 15, 15 125

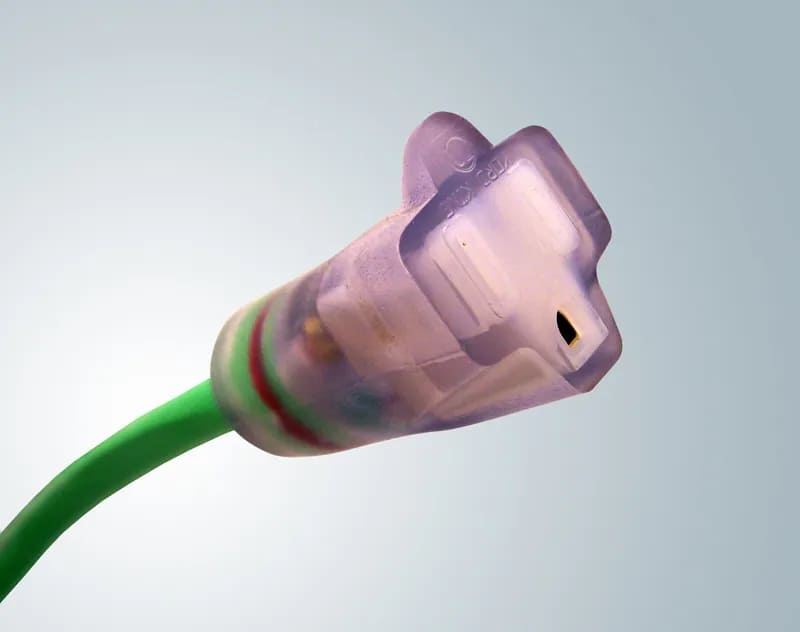

BFUP RECEPTACLE / 5-15R CAD Drawing KK16000-5-15 INDUSTRIAL DUTY NEMA 5-15R X X X BFUP RECEPTACLE / 5-15R Thumbnail Image 5-15R 16/3, 14/3, 12/3, 10/3 13, 15, 15, 15 125

Available in a variety of wire types.
