Offset Right Angle

Offset Right Angle Plug Types Technical Data

* – angles available in 1-15P configuration – see below

Offset Right Angle Power Cord Technical Data

3 Conductor Offset Right Angle

** Available in a variety of wire types **

2 Conductor Offset Right Angle

** Available in a variety of wire types **

Offset right angle power cords are manufactured with the ground pin at 8 different positions. This is useful in tight spaces or when multiple devices need to be plugged into a single outlet without obstructing other outlets.

Kord King’s offset right angle power cords are widely used in the appliance industry. They’re available in both a 2-conductor (standard or polarized) and 3-conductor configuration. The plugs are manufactured with the ground pin at 8 different positions.

Offset right angle power cords are molded in a variety of colors, in any length, and with opposite end terminated according to customer specifications.

Kord King’s power cords are manufactured in the U.S.A with short lead times. All power cords are U.L. listed and C.S.A. approved. The plug has an extra-large head with deep contoured ridges for easy non-slip handling, and features a heavy-duty strain relief.

Offset Right Angle Plug Construction and Orientation Options

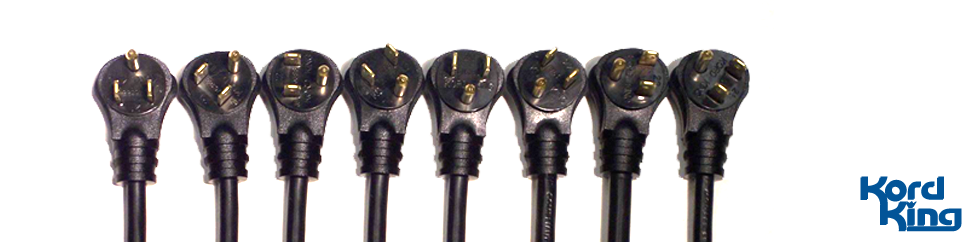

Offset right angle plugs are molded with the grounding pin or blade set at one of eight rotational positions: 0°, 45°, 90°, 135°, 180°, 225°, 270°, and 315°. This configuration allows the plug to clear adjacent outlets and route the cord in a predictable direction. The molded plug head includes deep contoured ridges for secure handling and a reinforced strain relief structure to support long term durability.

Both NEMA 5 15P and NEMA 1 15P patterns are available in all eight orientations. These options allow OEMs to match plug geometry to enclosure design, cord exit direction, and user access requirements.

Performance Characteristics for Industrial and Appliance Applications

Offset right angle power cords are offered in amperage ratings of 10, 13, and 15 amps at 125 volts. Wire options include 18/3, 16/3, 14/3 & 12/3 for 3 conductor cords, and the same wire sizes for 2 conductor versions. These configurations support a broad range of appliances, small equipment, and consumer devices that require controlled cord routing.

The offset design reduces stress on the plug and receptacle by directing the cable away from the outlet face. This helps maintain conductor integrity and reduces bending forces in tight installations.

Material and Design Features

Offset right angle power cords are molded in multiple colors and can be manufactured in any length required for OEM applications. Opposite end terminations are available according to customer specifications, including stripped leads, ring terminals, quick connects, or IEC connectors.

The plug head is designed with an extra large gripping surface and deep ridges to support non slip handling. Heavy duty strain relief protects the conductor bundle during repeated bending or tension. All cords are UL listed and CSA approved, supporting use in regulated environments.

Applications and Use Cases

Offset right angle power cords are used in:

• Appliances
• Consumer electronics
• Compact equipment
• Wall mounted devices
• Under counter installations
• Multi outlet environments
• Equipment requiring controlled cord direction

The offset geometry supports installations where clearance, routing, and outlet access must be managed efficiently.

FAQ

What Determines the Correct Offset Orientation for an Application?

Orientation is selected based on how the cord must exit the outlet relative to the equipment layout. The eight available positions allow engineers to match plug direction to enclosure design and routing requirements.

How Do Offset Right Angle Plugs Improve Installation in Tight Spaces?

The offset geometry directs the cord away from the outlet face, reducing bending stress and preventing interference with adjacent plugs or surfaces.

Which NEMA Patterns Are Available for Offset Right Angle Power Cords?

Both NEMA 5 15P and NEMA 1 15P configurations are available in all eight rotational positions, supporting 2 conductor and 3 conductor applications.

What Wire Sizes and Amperage Ratings Are Offered?

Wire options include 18/3, 16/3, 14/3 & 12/3 with amperage ratings of 10, 13, and 15 amps at 125 volts, depending on the configuration.
